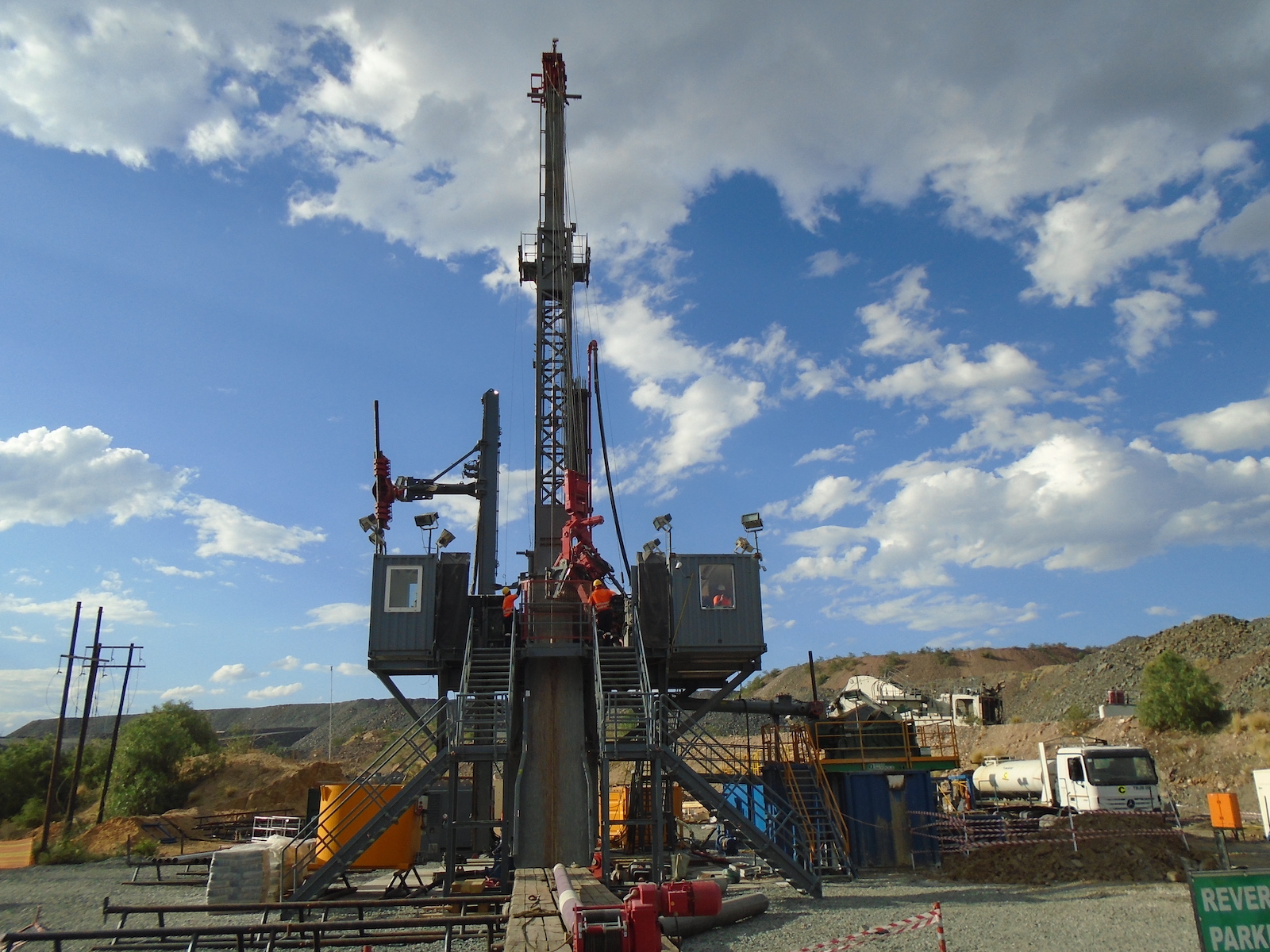

Drilling Rig B100
Details / Technische Daten
| Rating | 428 HP @ 2000 min-1 | 315 KW |
| Hook load | 22000 lb | 100 t |
| Drilling depth theoretical | 10000 ft | 3000 m |
Mast
| Height | 71,5 ft | 21,8 m |
| Drill pipe length | Range II | |
| Reeving | 8x | 7 sheaves |
Capacity
| Control load | Exceptional load | |
| Top Drive | 800 kN | 880 kN |
| Travelling block | 1050 kN | 1150 kN |
Top Drive (KDK)
| Torque 1st gear | 11,4 kNm | n = 140 min-1 |
| 22,8 kNm | n = 70 min-1 | |
| 2nd gear | 5,0 kNm | n = 320 min-1 |
| 10,0 kNm | n = 160 min-1 | |
| Max. torque for connection | 29,6 kNm |
Power Pack
| POWER PACK | ||
| Type | BF12L513C | Diesel 800 l |
| Sound emission | 55 dBA in 100 m distance | |
| Dimensions | 6000 x 2500 x 2500 mm | |
Substructure
| Dimensions | 6,0 x 4,0 m | 5,4 m free height |
| Slips capacity | 1200 kN |
Drawworks
| Diameter | 492 mm (1st) | LEBUS |
| Drill line | 24 mm | |
| Length | 205 | 3 Layers |
Core Winch
| Diameter | 323 mm (1st) | LEBUS |
| Drill line | 9 mm | |
| Length | 2000 m | 21 Layers |
Auxiliary Winch
| Capacity | 25 kN | |
| Length | 52 m |
(technische Kennwerte können je Maschinen-Typ abweichen)
